Siłowniki pneumatyczne

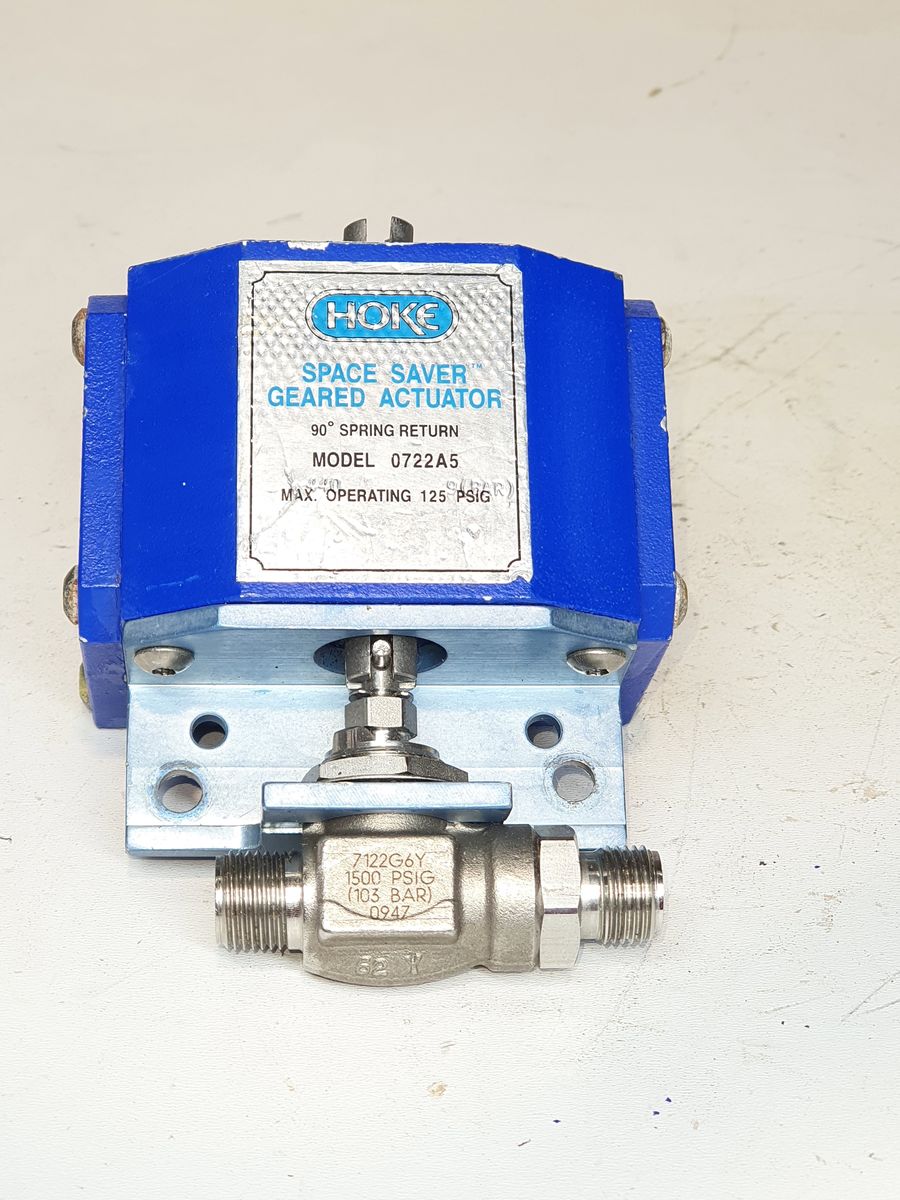

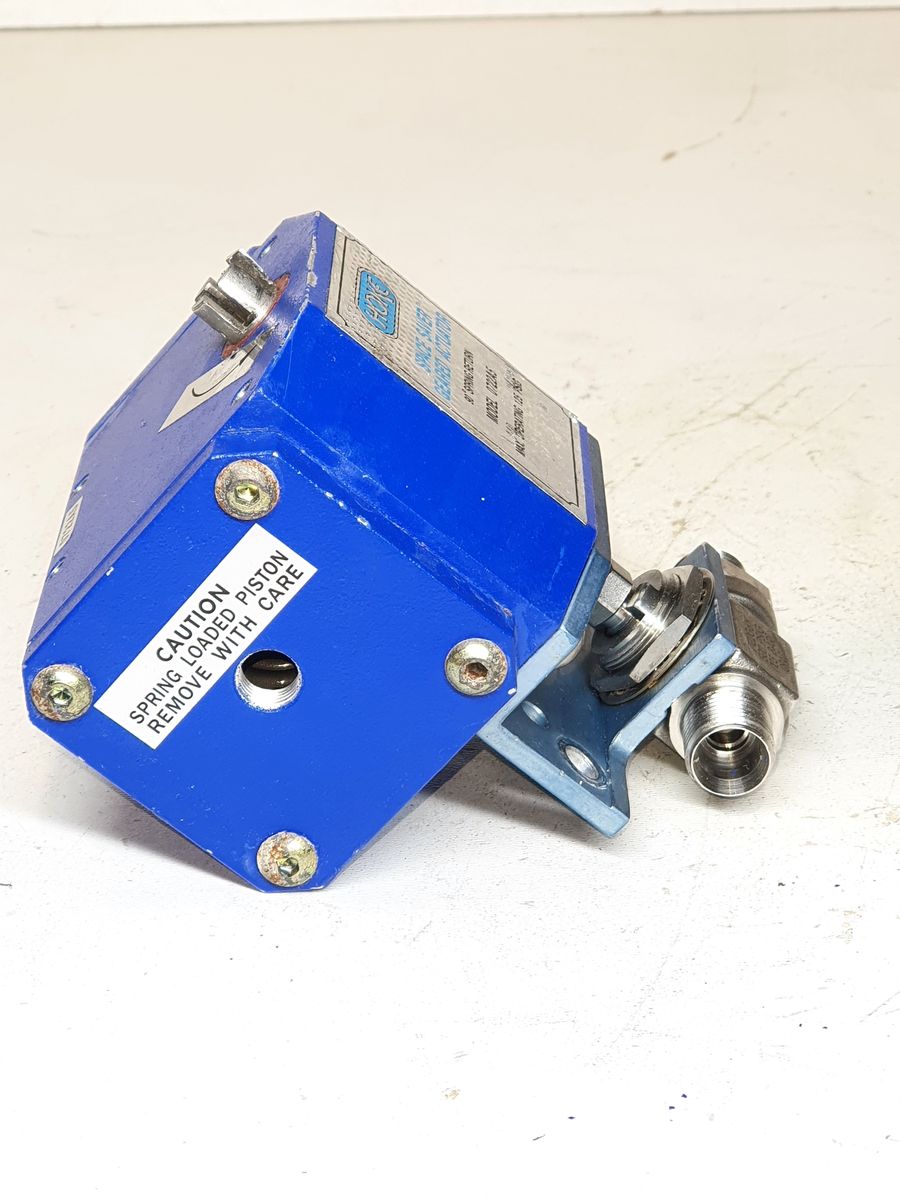

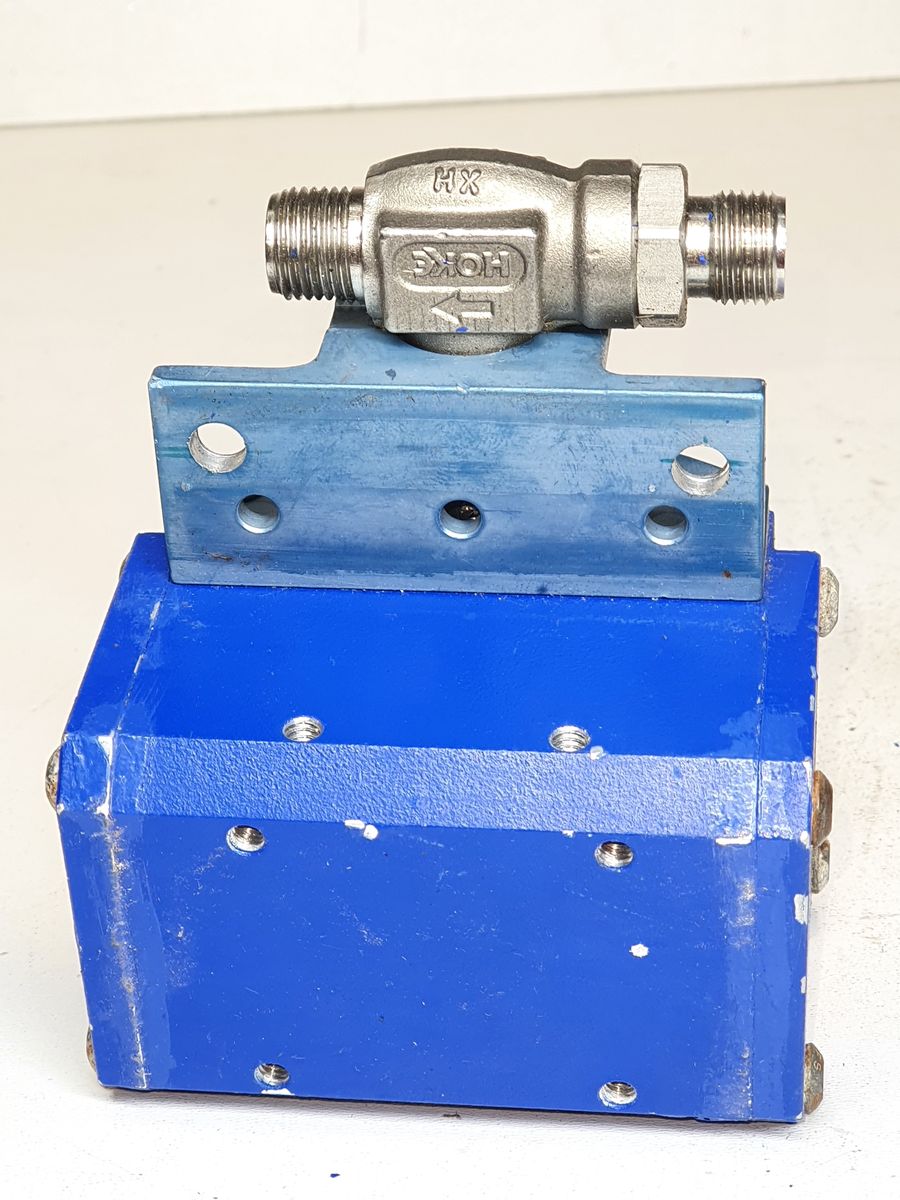

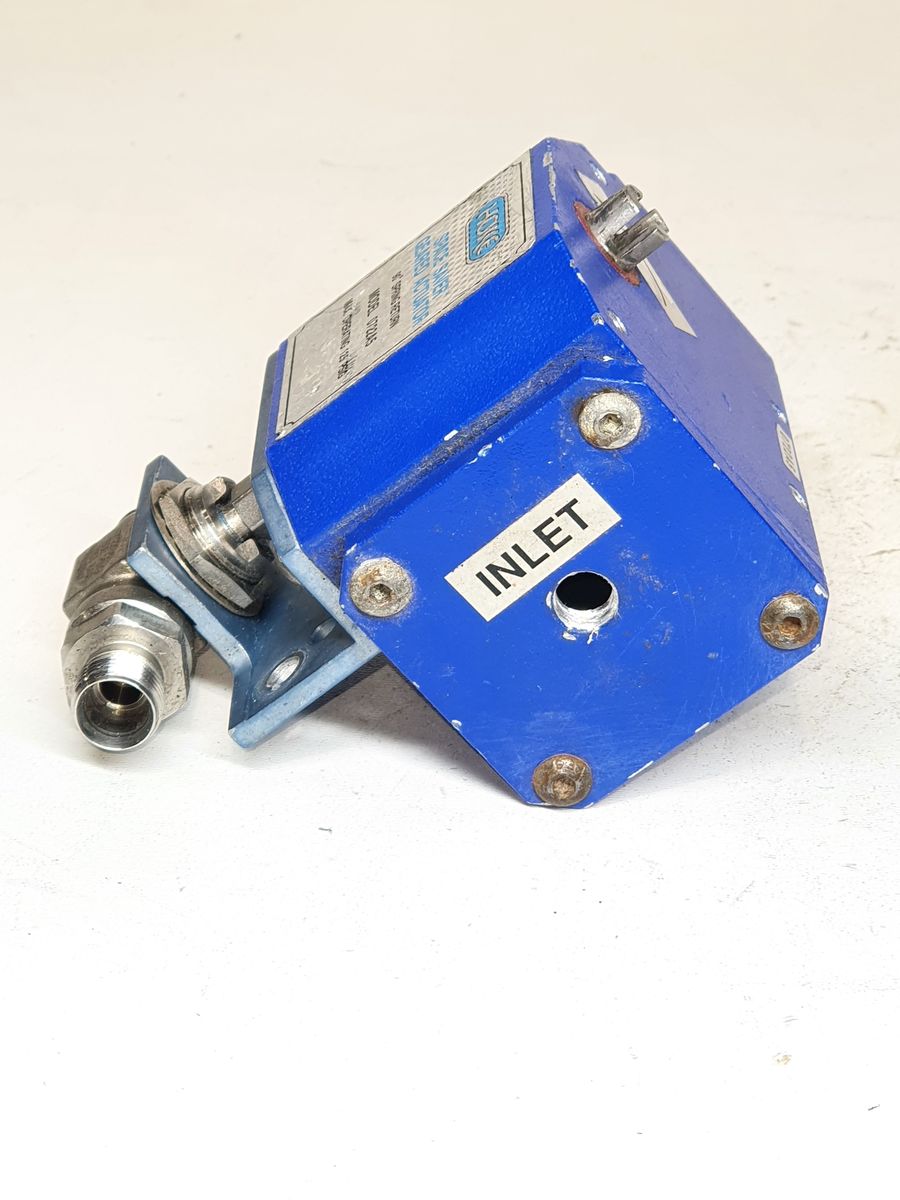

Hoke 0722A5/ 7122G6Y

SKU: 4022

Dostępny w magazynie

Używane
Pobrano z środowiska roboczego

Cena na żądanie

Prices exclude VAT. Contact us for bulk pricing or custom configurations.

Ważne: All warranties are our own warranties and do not cover factory or manufacturer warranties.

Okresy gwarancyjne według stanu

Nowy 12 miesiące

Odnowiony DOA

Używane DOA

We are not an authorized distributor, representative, or affiliate of any manufacturer or brand listed on this website

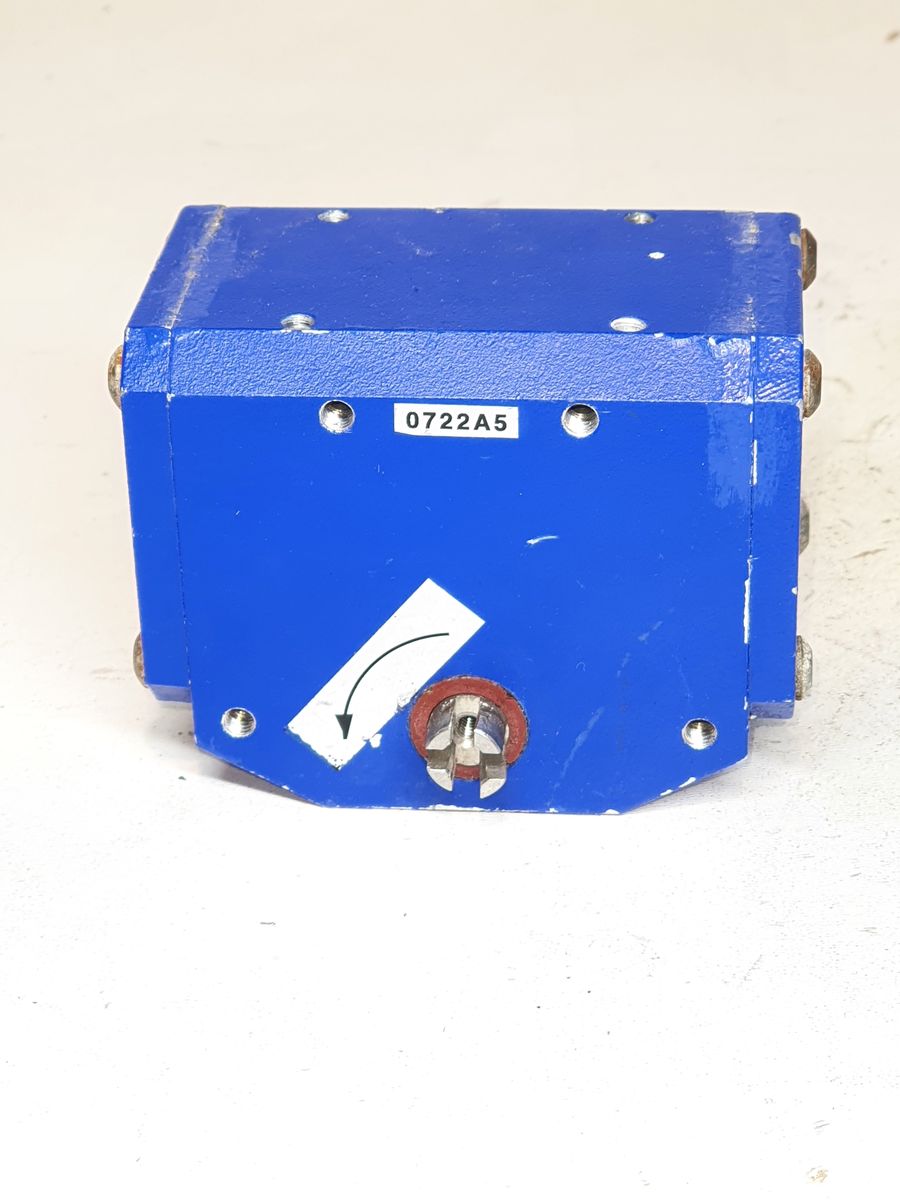

Hoke 0722A5

Specification	Value
Housing Material	Polyurethane coated aluminum
Maximum Operating Pressure	125 psig (9 bar)
Air Supply Connection*	1/8 Female NPT
Operating Temperature Range A4 Actuators	0° to 250° F (-18° to 121° C)
Operating Temperature Range A5 Actuators	0° to 400° F (-18° to 204° C)
Cycle time**	1 second (dependent on air supply)
Cycle Life	250,000 cycles minimum
Weight	1.7 lbs. (0.75 kg)

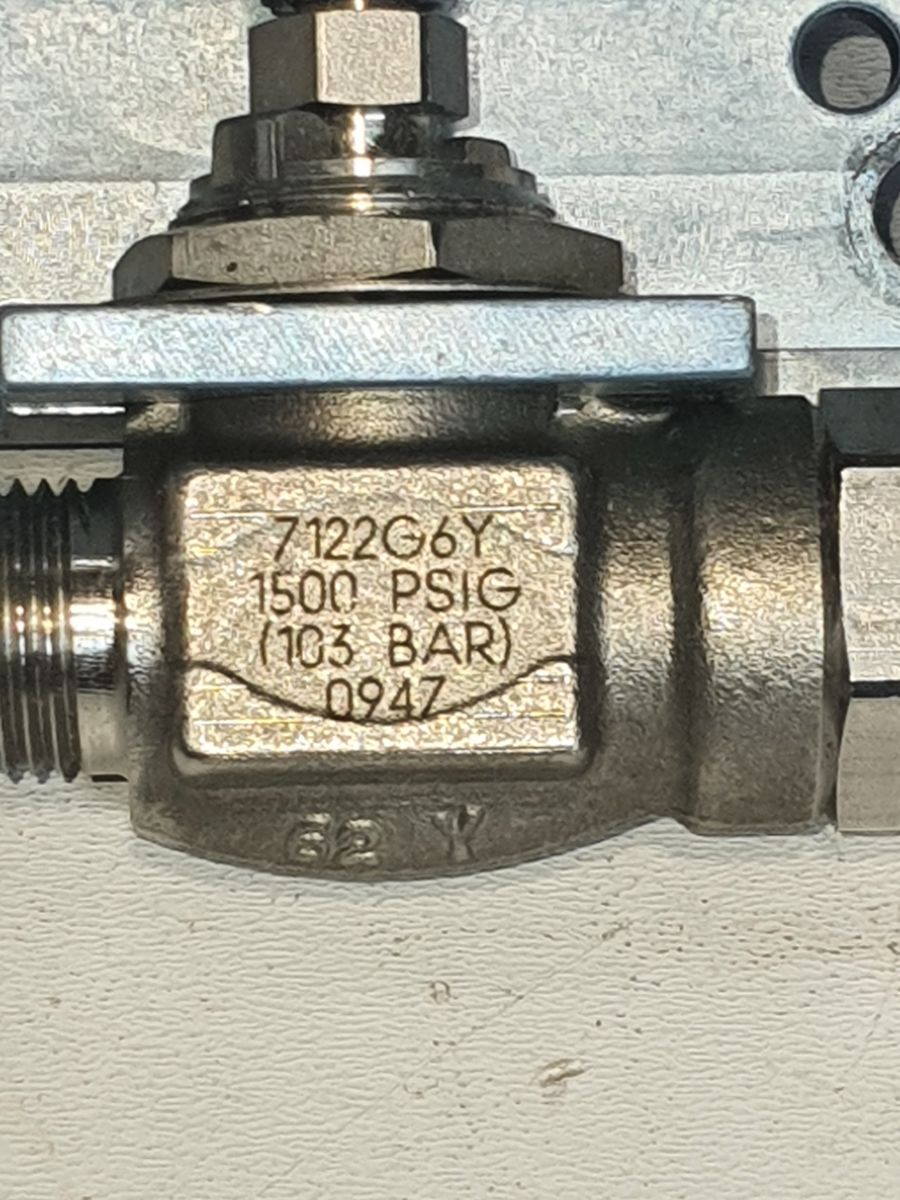

Hoke 7122G6Y

	Connections - Inlet	3/8" Gyrolok
Connections - Outlet	3/8" Gyrolok
Body Material	316 Stainless Steel
Operating Pressure Range	1500 psig at 70° F (103 bar at 21° C)
Operating Temperature Range	-40 to +350 ºF-40 to +176 ºC
Orifice	0.25 in6.40 mm
Cv	1.40
C	1.75 in45 mm
E	3 1/4 in83 mm
H	1/2 in13 mm
H1	7/16 in11 mm
Panel Hole	49/64 in19 mm
Panel Thickness	1/4 in6.0 mm
Features & Benefits	Quarter turn handle provides a visual indication of on/off valve position, improving safety. Dual encapsulated TFE seats and microfi nished ball ensure a leak tight seal. This combination provides greater valve reliability. Dyna-Pak packing provides a leak-tight seal with low operating torque in vacuum or high pressure applications, helping to prevent fugitive emissions. Floating ball provides pressure-assisted sealing and temperature wear compensation for longer valve cycle life and greater value. A wide variety of Hoke Gyrolok end fittings or pipe fittings provide the correct fi tting option for the application. Special High Tolerance NPT Thread
