Czujnik ciśnienia

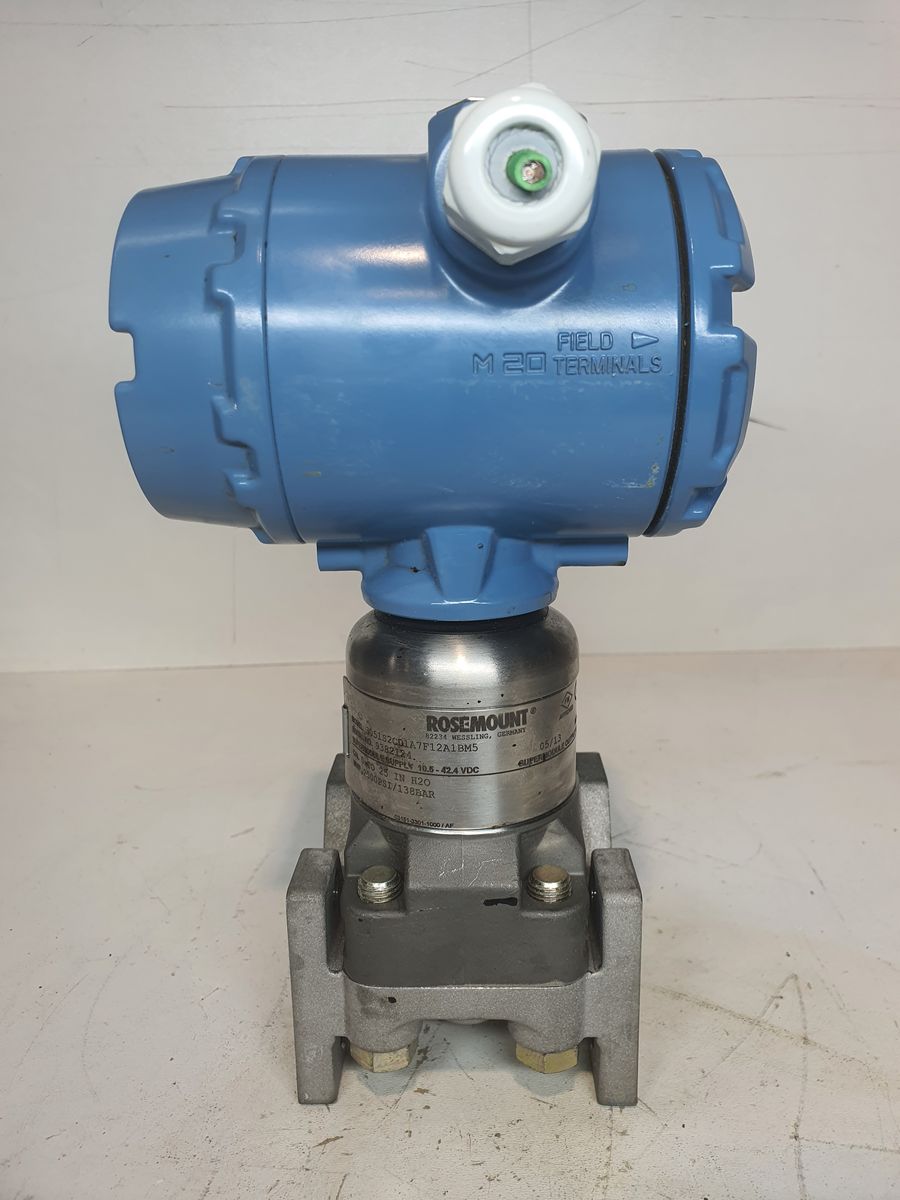

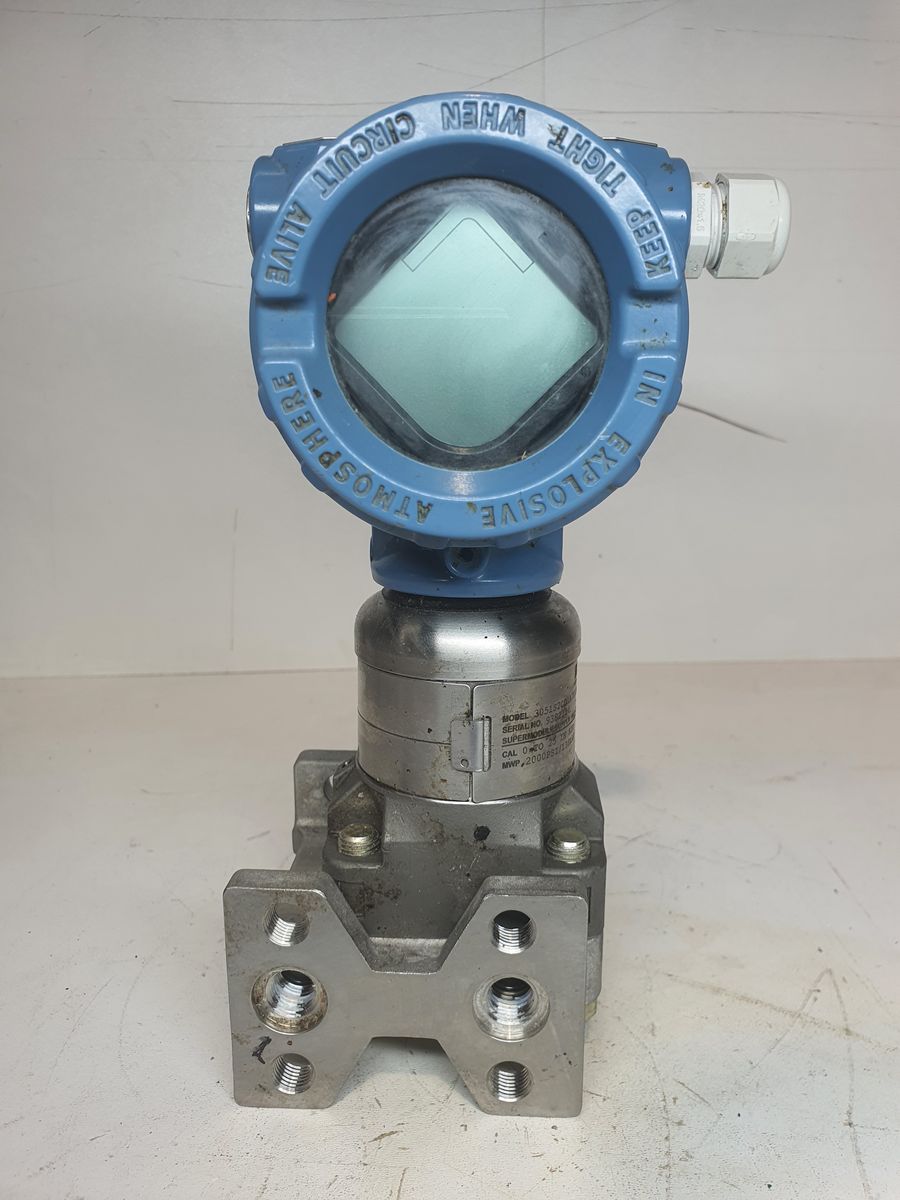

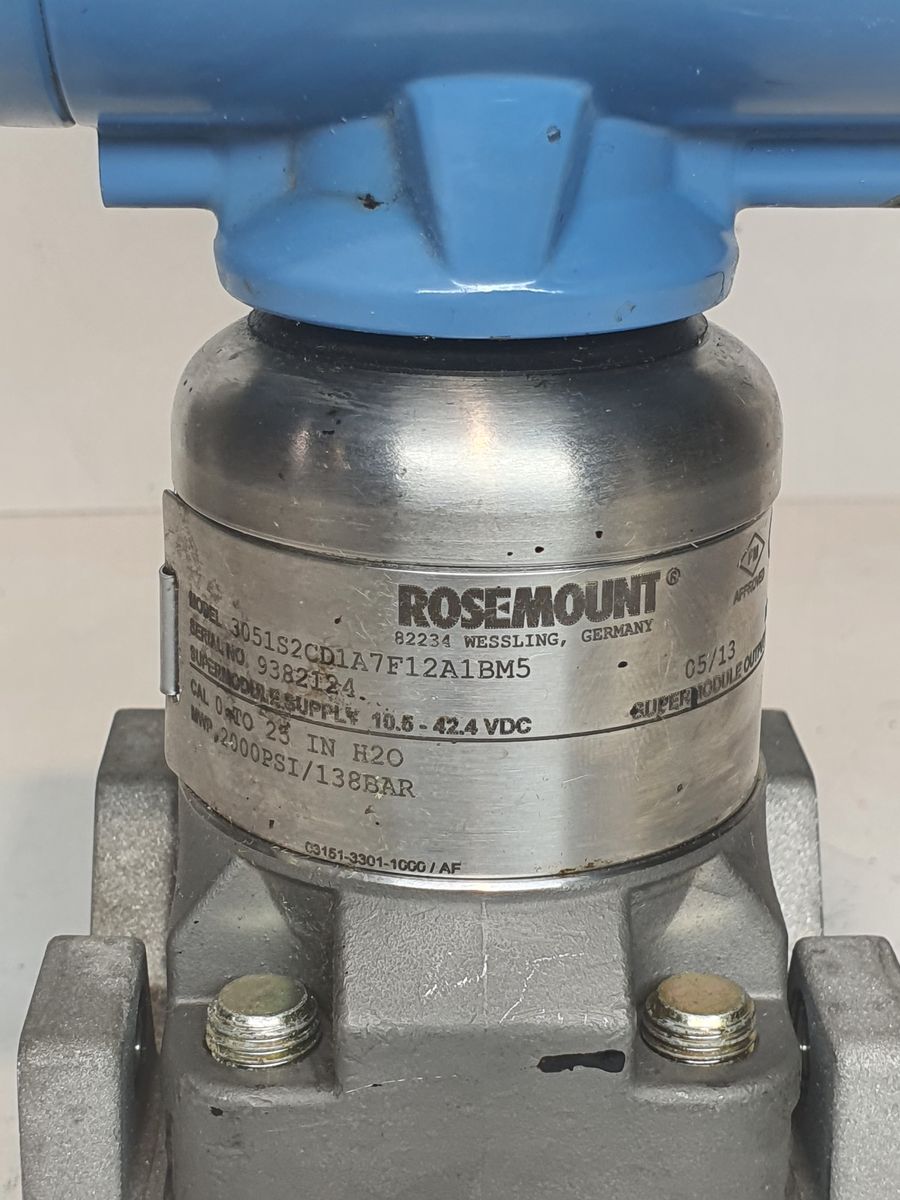

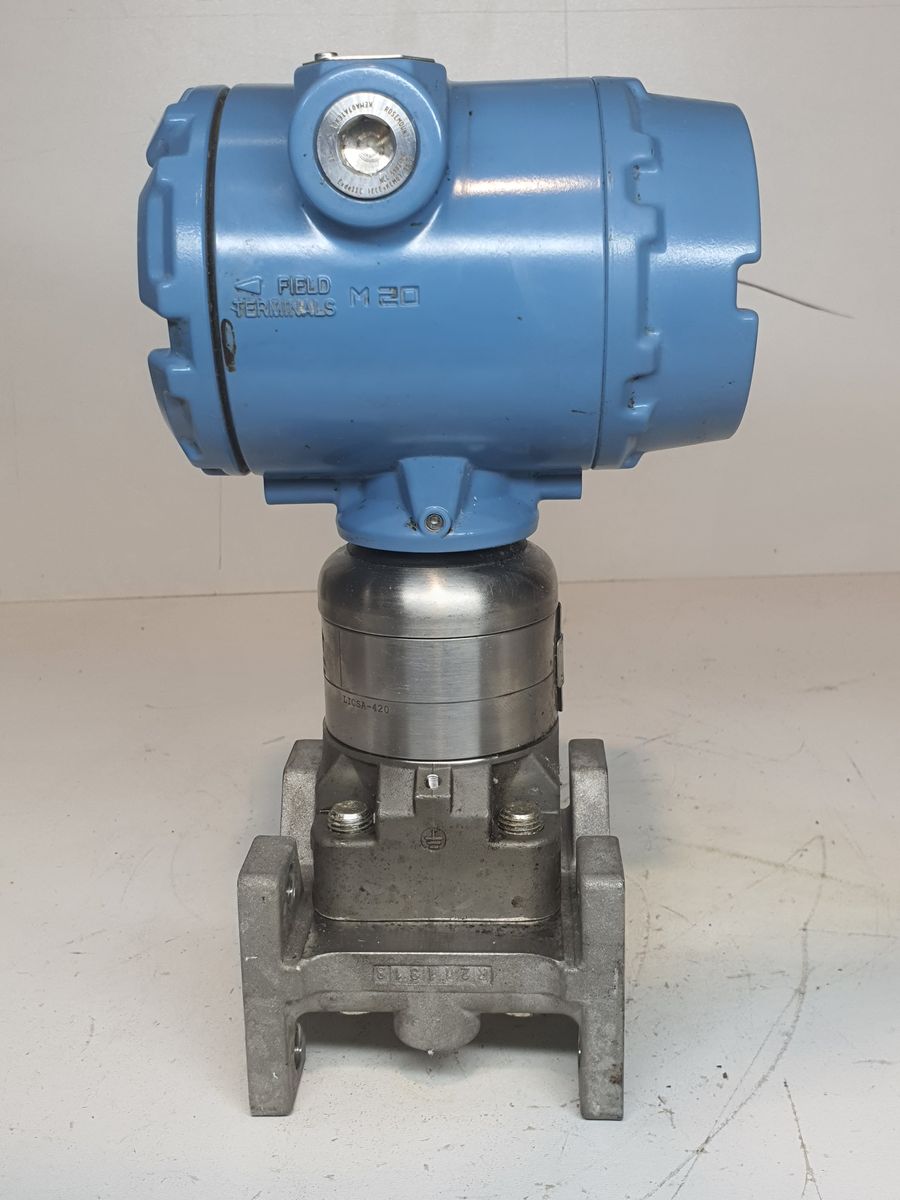

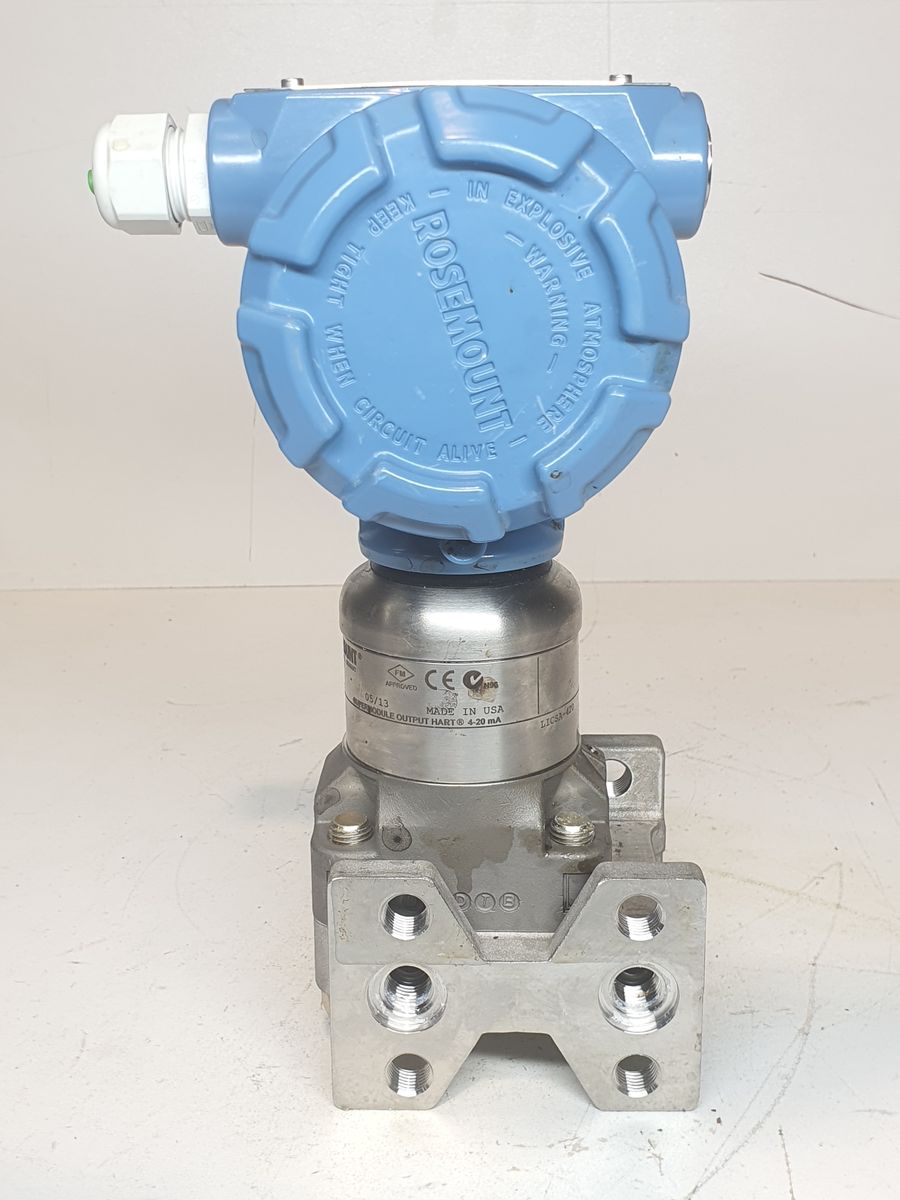

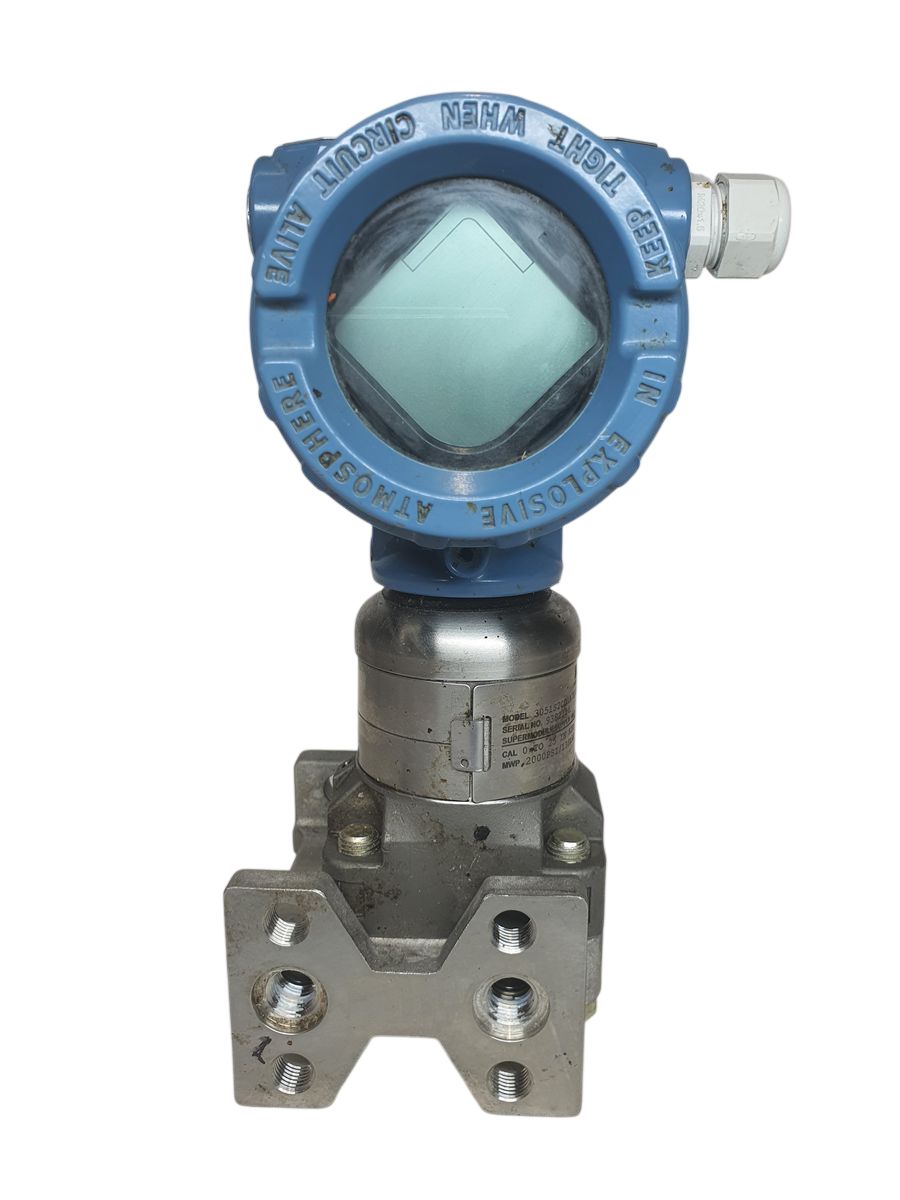

Rosemount 300S1BAM5/ 3051S2CD1A7F12A1BM5

SKU: 13007

Dostępny w magazynie

Używane
Pobrano z środowiska roboczego

Cena na żądanie

Prices exclude VAT. Contact us for bulk pricing or custom configurations.

Ważne: All warranties are our own warranties and do not cover factory or manufacturer warranties.

Okresy gwarancyjne według stanu

Nowy 12 miesiące

Odnowiony 3 miesiące

Używane DOA

We are not an authorized distributor, representative, or affiliate of any manufacturer or brand listed on this website

300S1BAM5

Item	Meaning
Type	Direct-mount T-style manifold
Valve Style	3-valve (2 block + 1 equalize)
Transmitter Connection	Direct coplanar mount
Process Connection	½-in NPT female
Material	316 stainless steel (body & valves)
Process Flange	4-inch line size
Supply Voltage	9-32 VDC/ 17.5mA

Item	Meaning
Model	3051S – Scalable Pressure Transmitter
Performance Class	Classic (±0.035% of span accuracy)
Platform	Coplanar design
Measurement Type	Differential Pressure (DP)
Pressure Range	0 to 25 inH₂O
Diaphragm	Gold-plated Alloy 400 (excellent corrosion resistance)
Output	4–20 mA + HART
Housing	Aluminum
Approval	ATEX flameproof (Ex d)
Display	Integrated LCD with buttons
Max Static Pressure	2000 psi / 138 bar
Supply Voltage	10.5–42.4 VDC
