Czujniki kontrastu
SICK KT5W-2P1116D
SKU: 40001
Dostępny w magazynie
Informacje o gwarancji
Ważne: All warranties are our own warranties and do not cover factory or manufacturer warranties.

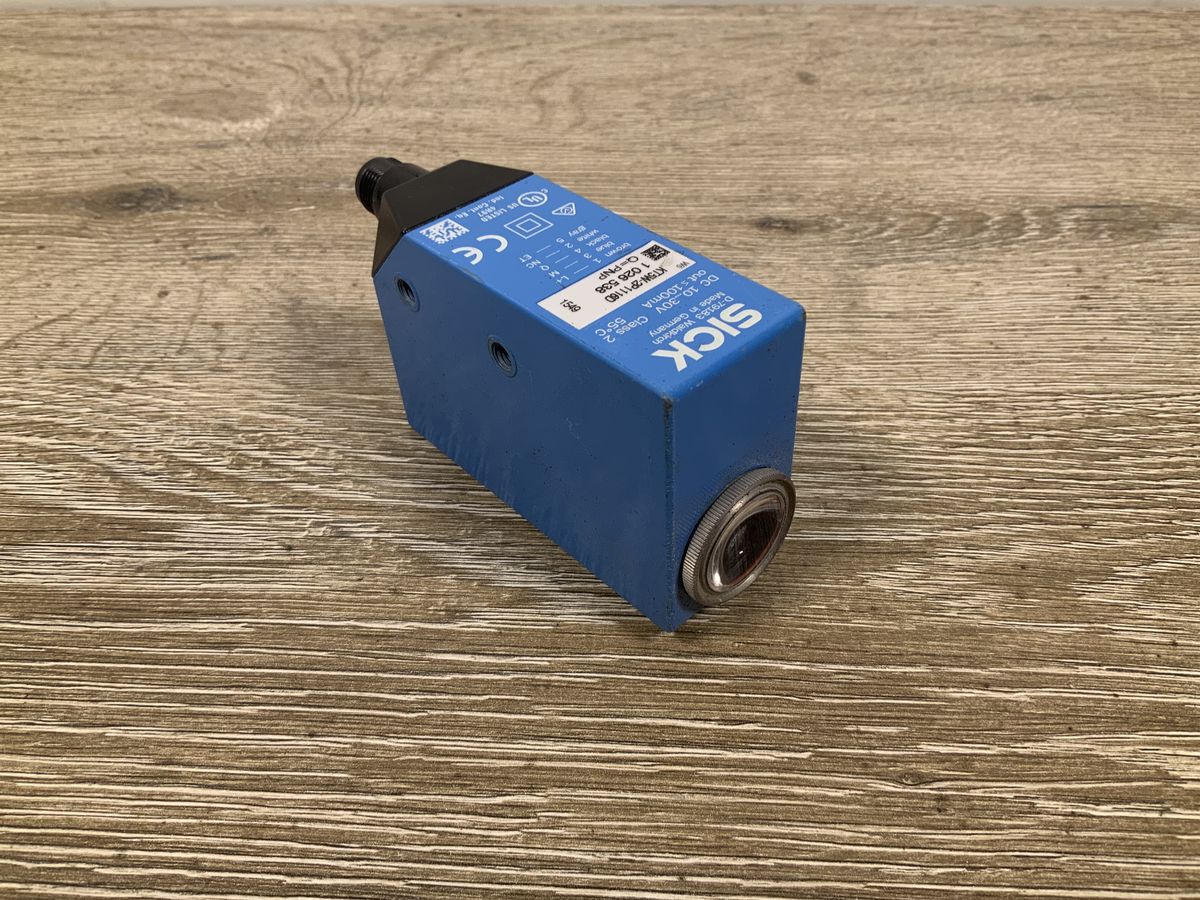

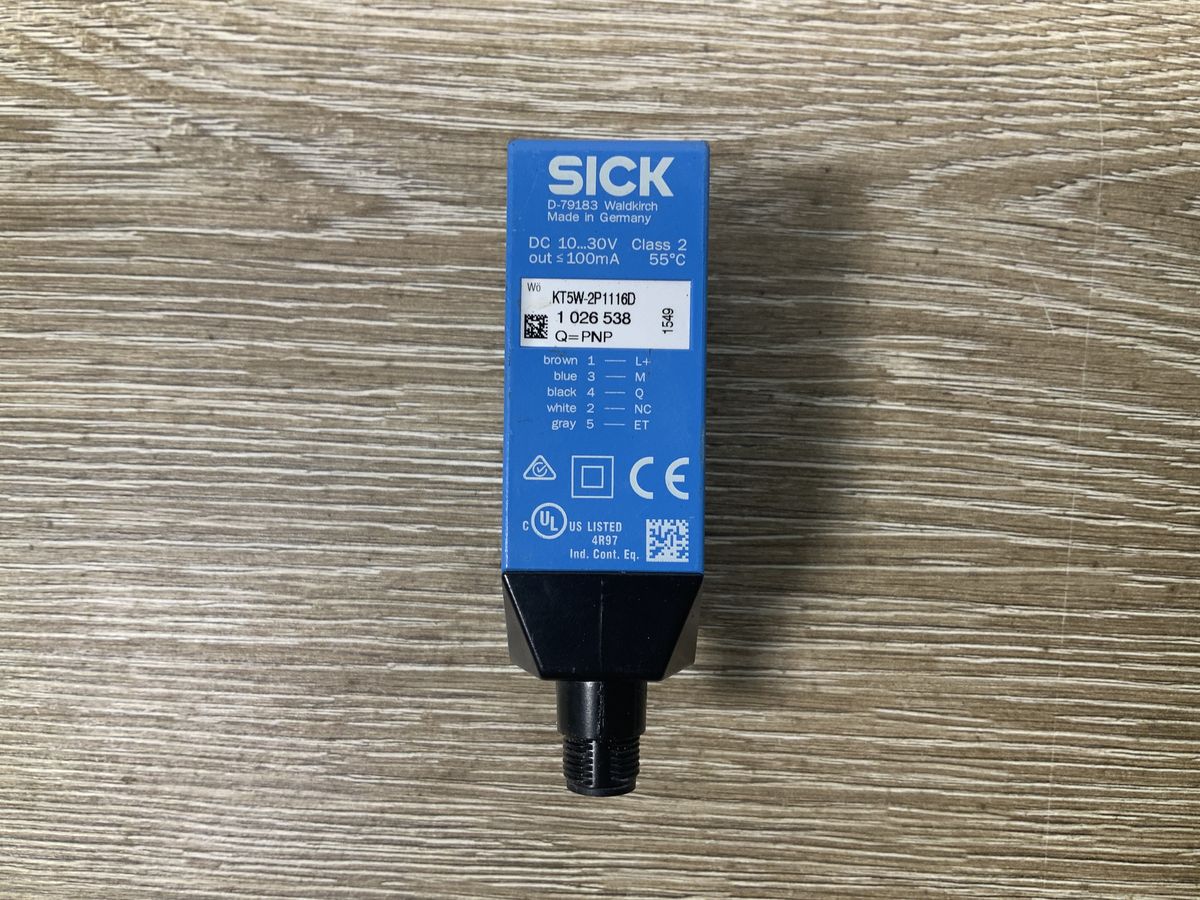

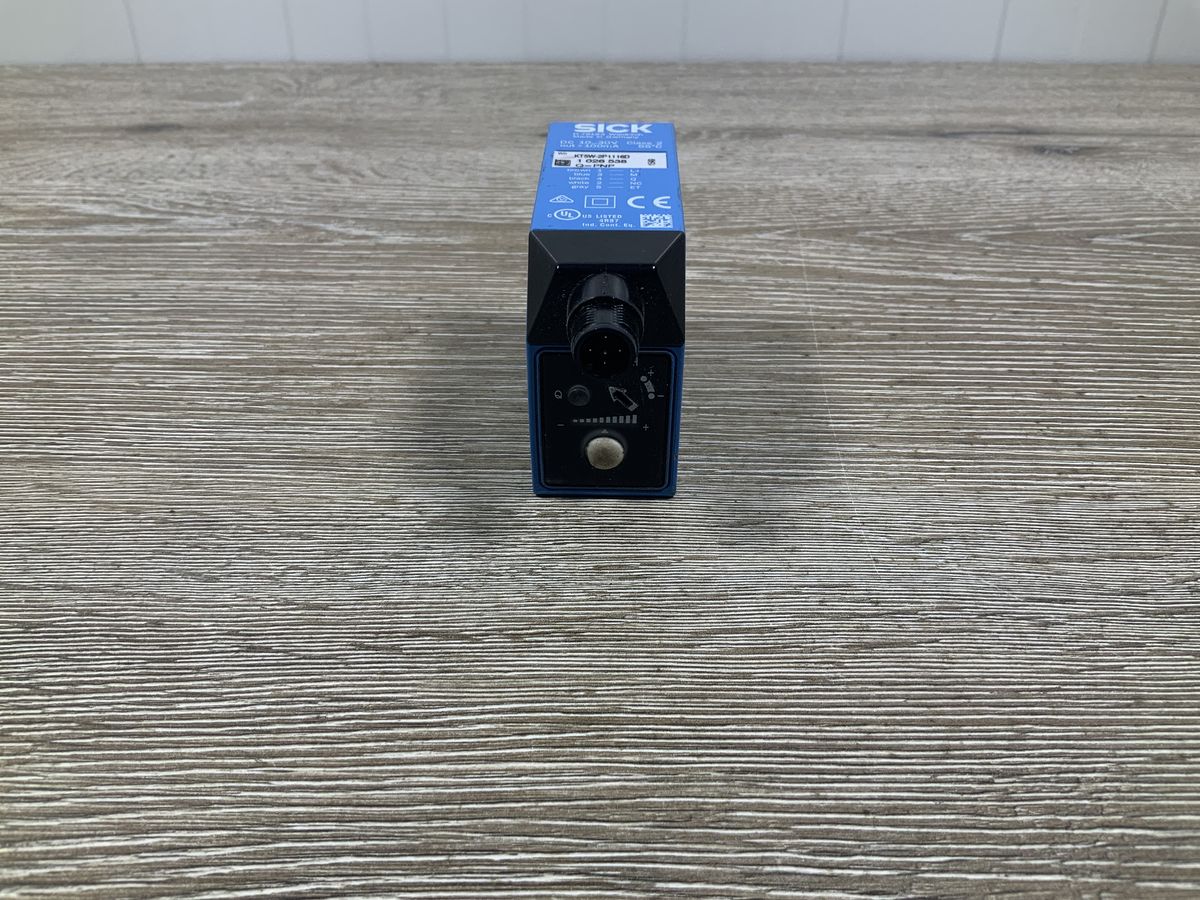

The SICK KT5W-2P1116D (part number 1 026 538) is an industrial photoelectric contrast sensor designed for precise registration mark and contrast detection. Operating on a 10 to 30 V DC supply, it features RGB LED light source technology, a 10 mm sensing distance, and a PNP switching output. It is equipped with a standard 5-pin M12 connector and a 2-point teach-in adjustment interface.
Specifications – KT5W-2P1116D
| Parameter | Specification |
|---|---|
| Part Number | 1 026 538 |
| Supply Voltage | 10...30 V DC |
| Output Current | ≤ 100 mA |
| Max. Temperature | 55 °C |
| Output Type | PNP |
| Connector Type | M12 5-pin |
×
![]()
