Przełączniki

Dungs LGW 3 A2

SKU: 22002

Dostępny w magazynie

Wybierz warunek

Used

Bez VAT: €35,00 (2 dostępny)

Z VAT wliczonym: €42,35

Prices exclude VAT. Contact us for bulk pricing or custom configurations.

Informacje o gwarancji

Ważne: All warranties are our own warranties and do not cover factory or manufacturer warranties.

Okresy gwarancyjne według stanu

Nowy 12 miesiące

Odnowiony 6 miesiące

Używane 3 miesiące

We are not an authorized distributor, representative, or affiliate of any manufacturer or brand listed on this website

Opis

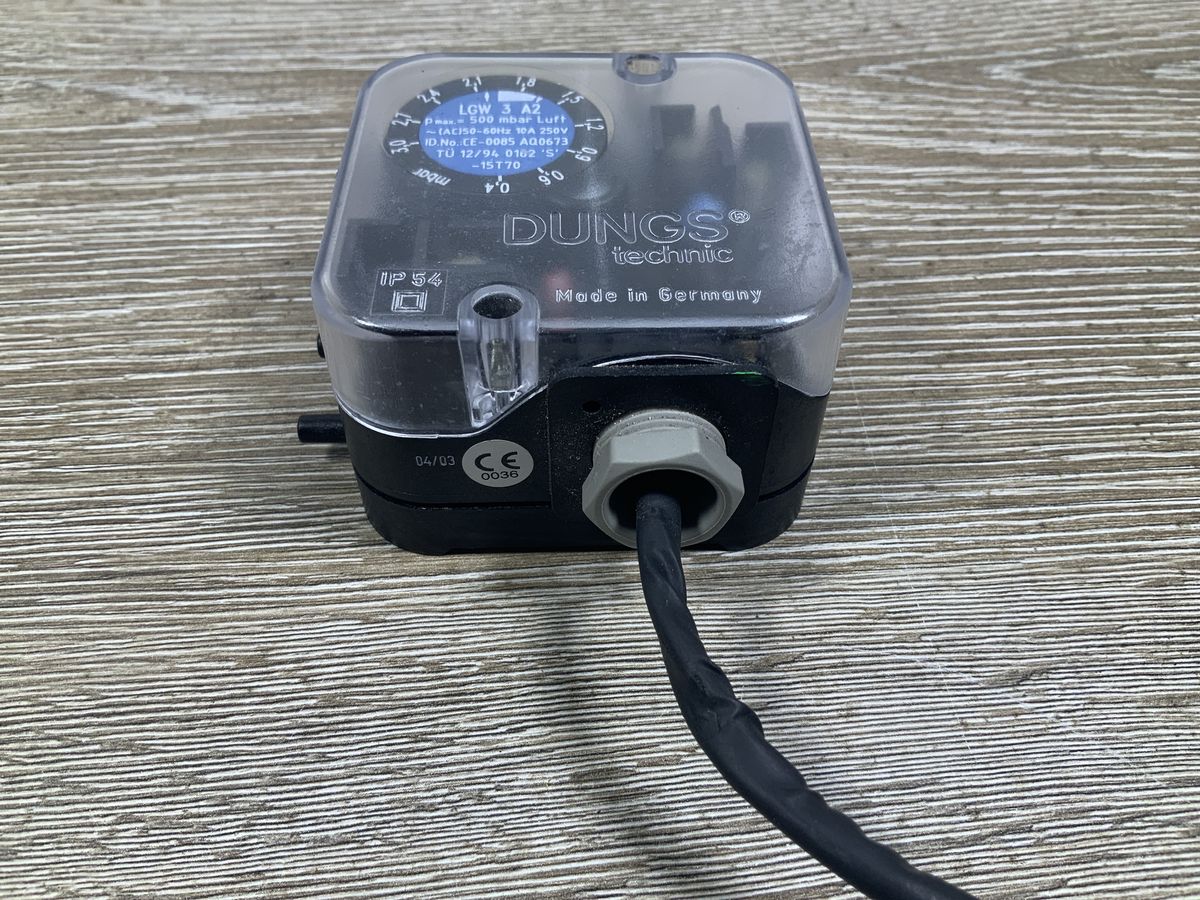

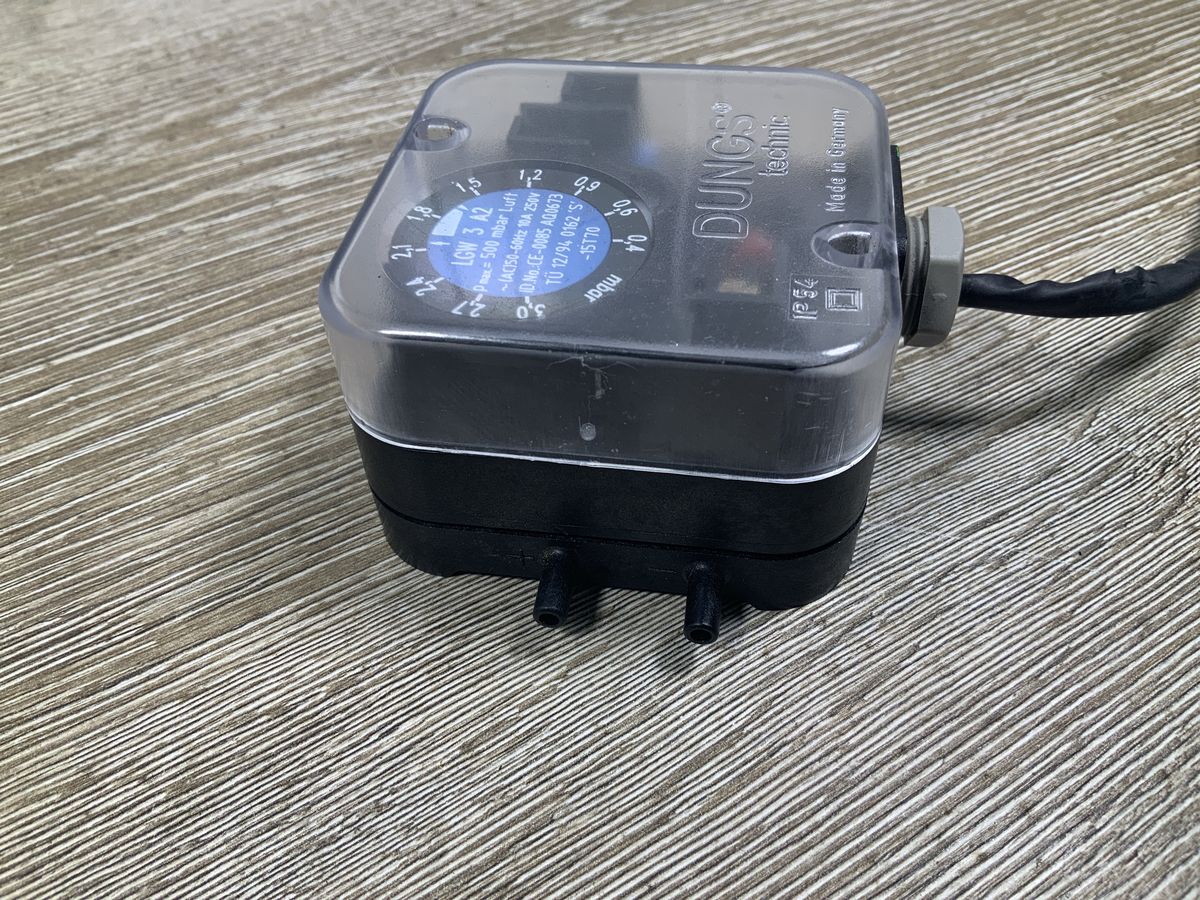

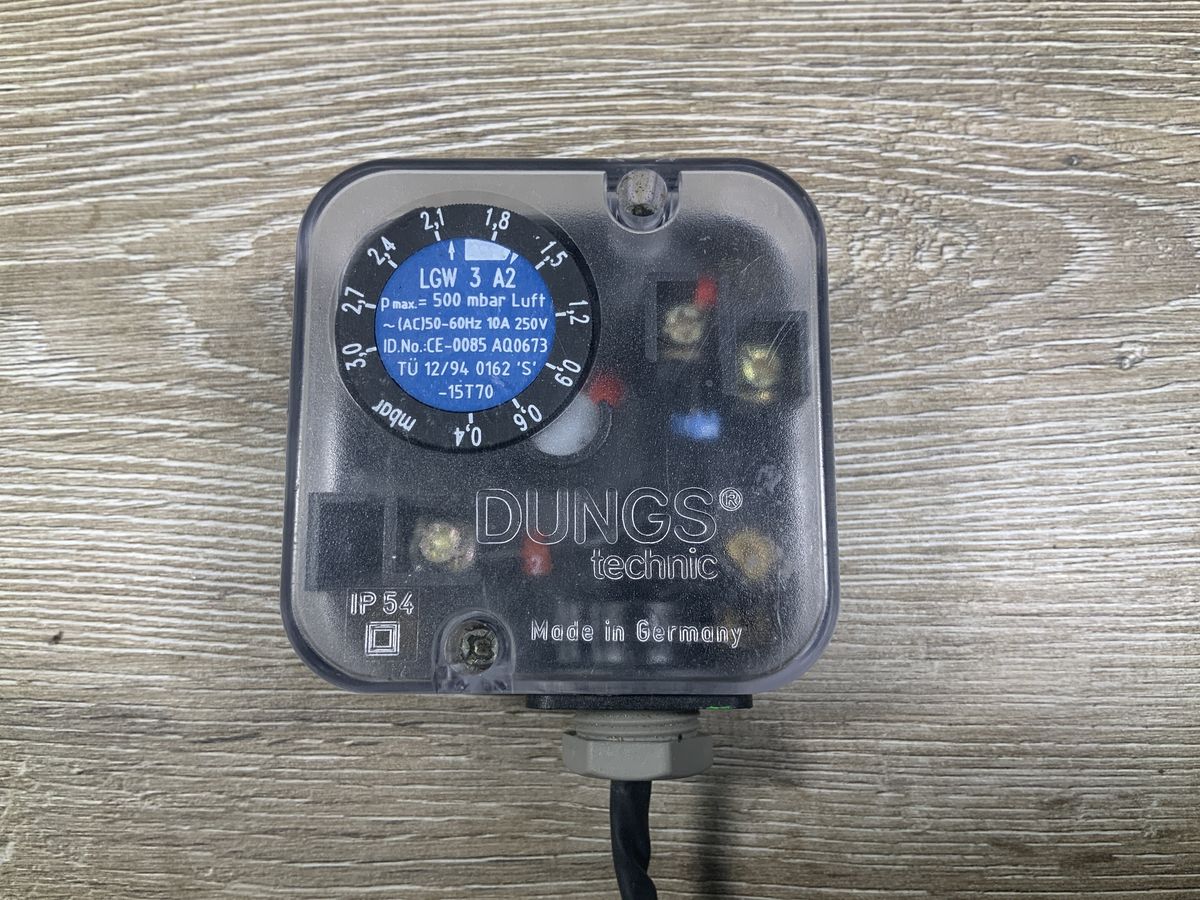

The Dungs LGW 3 A2 is an adjustable differential pressure switch designed for air and non-aggressive gas monitoring in combustion and HVAC systems. It features an adjustable dial scale from 0.4 to 3.0 mbar and a maximum operating pressure rating of 500 mbar. The unit is built into an IP54 rated housing with standard nozzle tube connections.

Specifications – LGW 3 A2

Parameter	Specification
Pressure Range	0.4 - 3.0 mbar
Max. Pressure	500 mbar
Voltage / Current Rating	250 V AC, 10 A, 50-60 Hz
Protection Class	IP 54
Temperature Range	-15 °C to +70 °C (-15T70)
