Manometr

Dwyer 2000-25MMC

SKU: 6035

Dostępny w magazynie

Wybierz warunek

Used

Bez VAT: €30,00 (1 dostępny)

Z VAT wliczonym: €36,30

Prices exclude VAT. Contact us for bulk pricing or custom configurations.

Informacje o gwarancji

Ważne: All warranties are our own warranties and do not cover factory or manufacturer warranties.

Okresy gwarancyjne według stanu

Nowy 12 miesiące

Odnowiony 3 miesiące

Używane DOA

We are not an authorized distributor, representative, or affiliate of any manufacturer or brand listed on this website

Opis

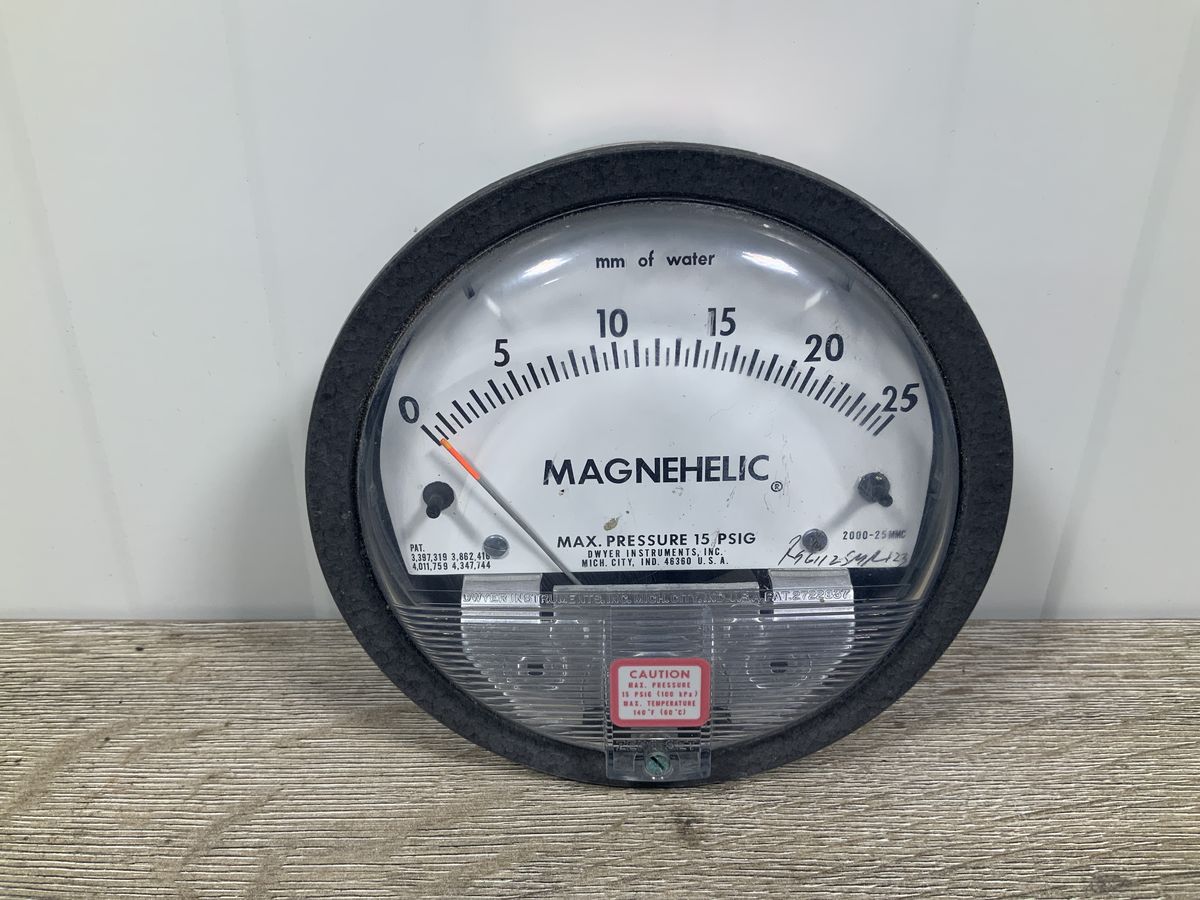

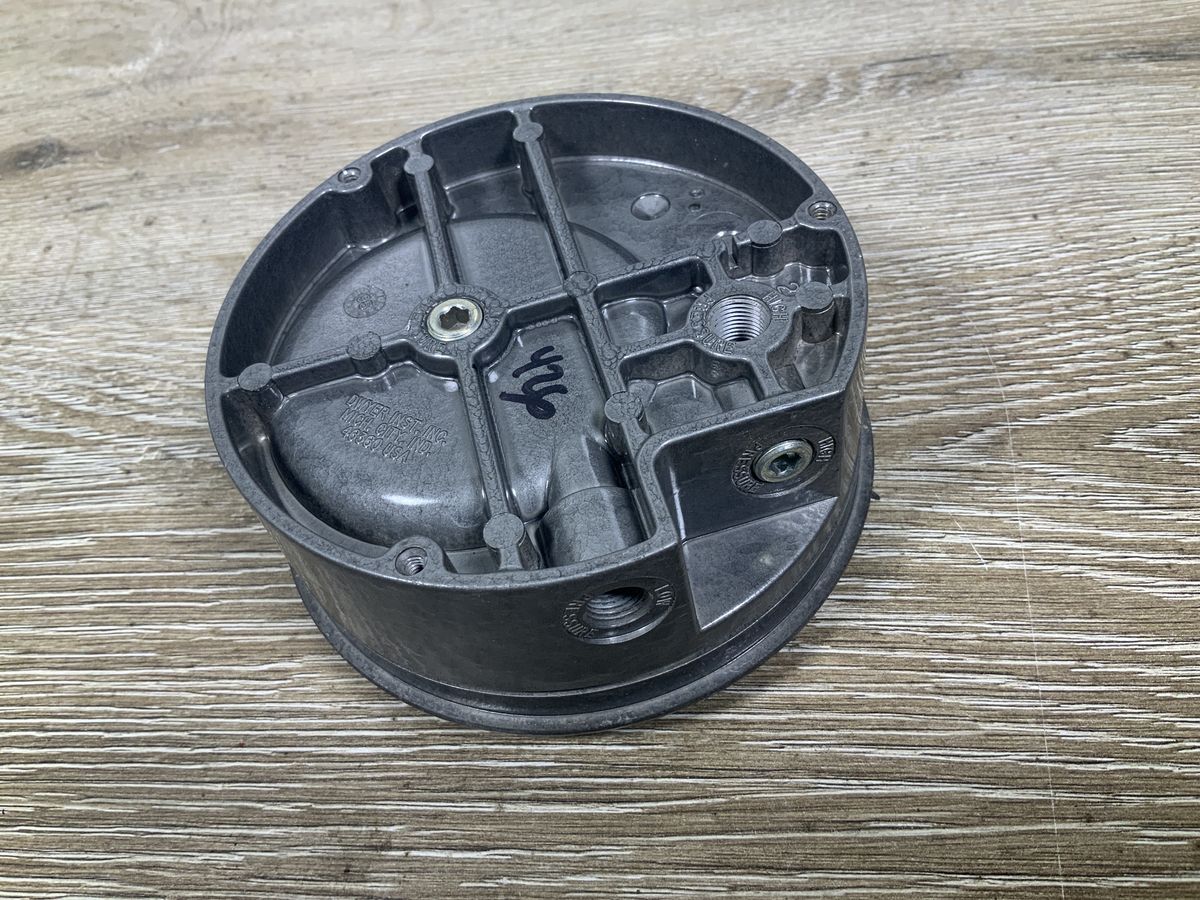

Dwyer Magnehelic 2000 series differential pressure gauge designed to measure positive, negative, or differential pressure of air and non-corrosive gases. Features a 4-inch dial with a measurement scale of 0 to 25 mm of water column and a rugged die-cast aluminum enclosure. Equipped with dual 1/8-inch NPT high and low pressure ports on the side and rear.

Specifications – 2000-25MMC

Parameter	Specification
Pressure Range	0 - 25 mm of water

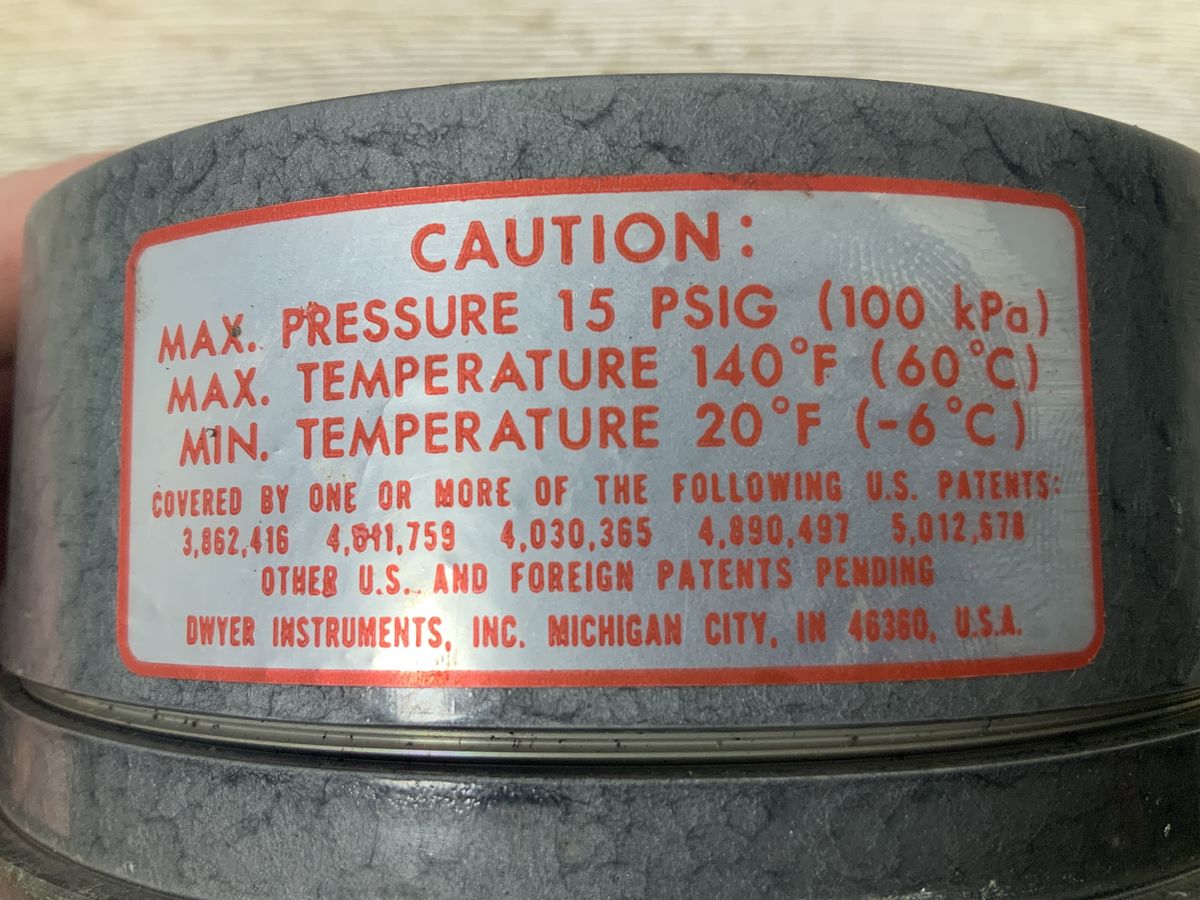

Max. Pressure	15 PSIG (100 kPa)
Max. Temperature	140 °F (60 °C)
Min. Temperature	20 °F (-6 °C)
Process Connection	1/8" NPT Female
